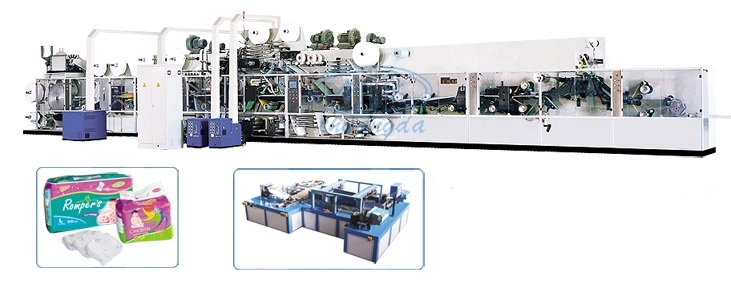

BSD-3N Full Automatic Baby Diaper Machine

PRODUCT DETAILS

Structure and Character

• The machine can produce four sizes (S,M,L,XL) baby products by changing cutting tools and gear box.
• High speed teeth-like crusher can take treated and untreated pulp.
• Adopt PLC control system
• Safety protective door
• Automatically splicing material without stopping the machine, so the working speed is guaranteed.
• Automatically detect and reject defective products and trim remove.
• Automatically stop the machine when material is broken or used out.
• Human machine interface is controlled by touch screen.
• Most electric components are famous international brand.
• Elastic waistline design.
• Embossing as client's sample.
• Single pulp feeding systems.
• The thickness of surface plate: 30mm
• The direction of production: left to right

Main Technical Parameter

• Power supply; 380V, 50HZ
• Power: 250KW
• Designed production speed: 500pcs/min
• Stable production speed: 350~400 pcs/min
• Product dimension:
•                                a) XL (510~520)x330mm

                                           b) L (470~480)x320mm

                                           c) M(430~440)x320mm

                                           d) S(380~390)x280mm (customised)

• Machine Size: 26000x1800x2800 mm (LxWxH)
• Weight: 30T
