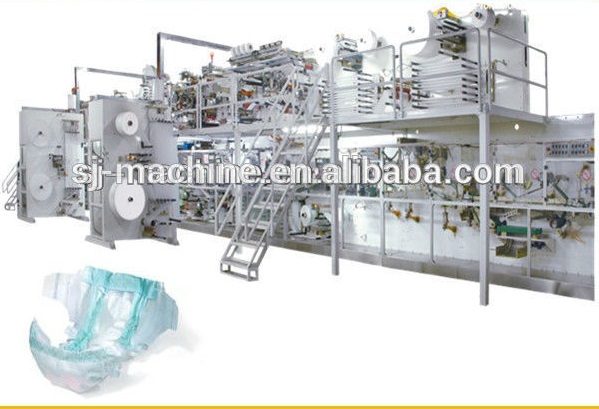

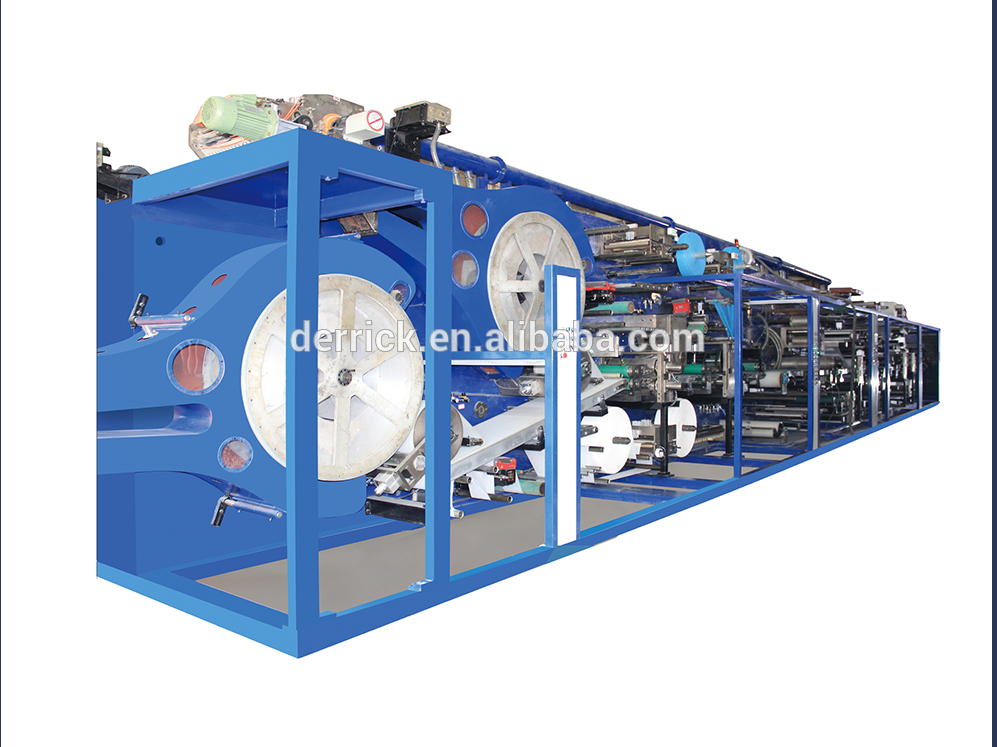

BSDH-6A Full Automatic Adult Diaper Production Line

PRODUCT DETAILS

Functions and character

• Suitable to produce three sizes (M,L,XL)
• Frequency motors driven with PLC control and touch screen.
• Double high speed teeth-like crushers to take with treated and untreated pulp
• Double web-wheel Molding units to make pulp into two layers of cotton core
• Automatically detect and reject defective products and trim remove
• Phase adjusting during running without stop, convenient to opearte machine
• Equipped with safety protective door
• According to client's requirement, it is optional to equip:

             a.Servo motors driven, higher automatically and faster speed and more stable

             b. Auto splicing units, to change raw materials without stop machine

Main Technical Parameter

• Power supply: 380V 50HZ
• Power: 280KW (exclude hot melt applicators and air compressor)
• Design speed: 200pcs/min
• Stable production speed: 150 pcs/min
• Waste percentage: <=4% (exclude caused by glue applicators failure)
• Machine size: 35000x8000x4500mm
• Machine weight: 60T
• Machine direction: left to right
