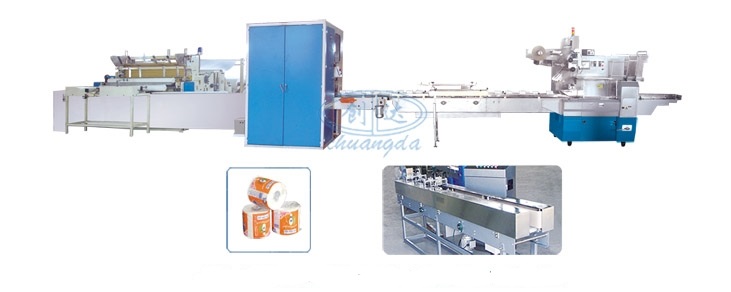

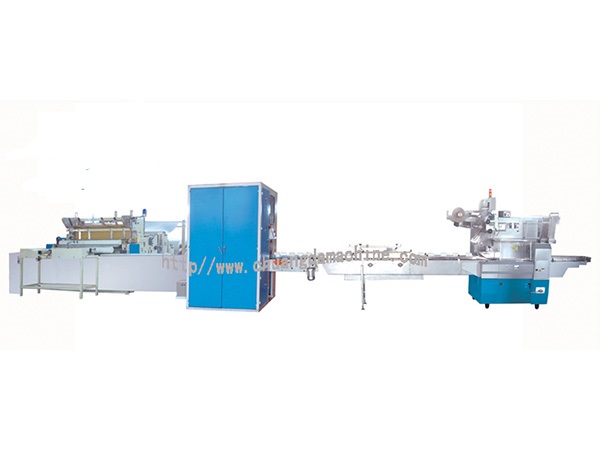

BSDH -1575-YD-H Full Auto Toilet Paper Production Line
PRODUCT DETAILS
- Power Supply: 380V 50Hz
- Power: 18KW
- Jumbo Roll Max Width: 1750mm(can be cutomizes)
- Finished Product Diameter: Ф80~Ф140mm(can be customizes)
- Finished Procuct Inner Diameter: Ф38~Ф48mm
- Jubmo Roll Diameter: ≤1100mm
- Jumo Roll Inner Diameter: Ф76mm
- Perforation Pitch: 4pcs of anvil blades(115mm)(can be cutomized )
- Speed: 0~180m/min
- Programming Controller: PLC(Delta)
- Paper unwinding unit: 1~3ply(can be customized)
- Air Pressure: 3HP arr Compressor, >=5MPa/Kg (Prepared by buyer)
- Suitable paper Gramage: 10~30gsm
- Edge Embossing Unit(optional): steel to steel,pneumatic control,
- Embossing Unit: steel to steel with big Roll
- Machine Size: 10000*3000*2000mm(L * W * H )
- Machine Weight: about 12000kgs (whole machine with 40mm Wallboared type)
Main Technical Parameter
- Power Supply: 380V 50Hz
- Power: 11KW
- Jumbo Roll Max width: 1750mm(can be cutomizes)
- Toilet Roll Diameter: Ф105~Ф115mm(can be customized)
- Design Speed: 120cuts/min
- Stable Speed: 100cuts/min
- Driven System:delta servo Motor
- Blade Size: Ф610*4.7mm
- Machine Size: 6500 * 2500 * 2000mm (L*W*H)
- Machine Weigh: about 4500kgs
Full Auto Toilet Paper Single Roll Packing Machine
- Power Supplay: 220V 50Hz
- Power: 8KW
- Suitable to Pack: single toilet roll with core or coreless
- Design Speed: 0~240pics/min
- Sable Speed: 180pcs/min(with core) 120pcs/min(without core)
- Packing film structure: double rollers
- Toilet Roll Diameter: Ф90 ~ 120mm (can be customized)
- Toilet Roll Length: 90~150mm(with core) 90~170mm(without core)
- Bag Making Module: 2 sets (diameter range 90~120mm)
- Packing Material: BOPP,SPP
- Packing Film thickness: 0.018 ~0.03mm
- Packing Film Max diameter: 380mm
- Packing Film inner Diameter: 76mm
- Packing Filim max width: 430mm
- Air pressure:>=5MPa/kg (prepared by buyer)
- Packing Way Back Sealing with saide Sealing(Two side sealing models:total-close and semi-closed,depending on film size)
- Machine Size: 6650x2850x1550mm (LxWxH)
