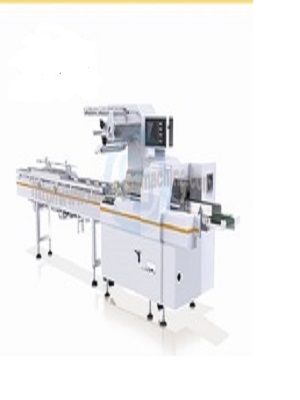

BSDH-90 Full Auto Toilet Paper Single Roll Packing Machine

PRODUCT DETAILS

Main Technical Parameter

• Power supply: 220v 50Hz
• Power: 8KW
• Suitable to pack: single toilet roll with core or coreless
• Design Speed: 0~240pcs/min
• Stable Speed: 180pcs/(with core) 120pcs/min(without core)
• Packing film Structure: double rollers
• Toilet Roll Diameter:?90-120mm(can be customized)
• Toilet Roll Length: 90-150mm(with core)90~170mm(without core)
• Bag Making Module: 2 sets(diameter range 90~120mm)
• Packin material: BOPP,SPP
• Packing film thickness: 0.018~0.03mm
• Packing film max Diameter: 380mm
• Packing film inner Diameter: 76mm
• Packing film max Width: 430mm
• Air Pressure:>=5Mpa/kg(prepared by buyer)
• Packing Way: Back sealing with side sealing (Two side sealing modes: total-close and semi-closed,depending on film size)
• Machine Size: 6650×2850×1550mm(L×W×H)
• Machine Weight: about 1700kgs
