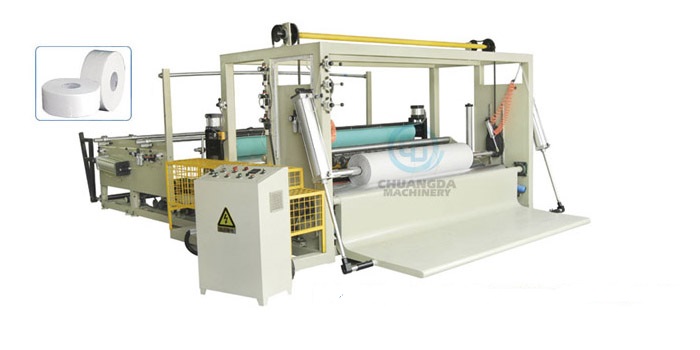

BSDH-2800 High Speed Jumbo Roll Slitting & Rewinding Machine

PRODUCT DETAILS

BSDH-2800 High Speed Jumbo Roll Slitting & Rewinding Machine is slitting from single ply big Jumbo roll into several small 2,3,4 layers paper rolls. The final products can become the raw materials for folding tissue machines, napkin tissue machines, box facial tissue machines, and so on. It has the reasonable and durable structure in machine, with pneumatic device. The easy operation and high speed running of machine caster for many customers in the world.

Main Technical Parameter

• Diameter of final product: ?1300
• Width Slitting: Adjust
• Width of Jumbo Roll (Customise):2750mm
• Speed:200~400m/min
• Diameter core of final product: 76.2(customize)
• Diameter of Jumbo Roll: ?1300(customize)
• Diameter core of Jumbo Roll:76.2(customize)
• Back final product stand:1~3 layers(customize)
• Jumbo roll core shalf: Air-shalf
• Rewinding system: Pneumatic synchronous rewinding
• Slitting system: Big diameter slitting round blade
• Feeding system: Automatic feeding roll
• Slitting edge system: Vaccum slitting edge 2.2KW
• Power: Frequency conversion speed regulator 11KW
• Pneumatic system: 5 HP air compressor,above air pressure, 5kg/cm2 Pa(provide by customer)
• Machine diamension: 6000×2700×2100mm(L×W×H)~8500×4000×2100mm(L×W×H)
• Machine weight: 5000kg

Main Features

• It adopts the timing belt driving.Although it runs the fastest speed,there is lowest noisy.
• The back final product stand have the ultra-width belt which improve the speed of transfer the jumbo roll.
• It is very convenence to adjust the width of final products by the new fit device.
• It has the pneumonic up the jumbo roll and vacuum absorb edge device.
• Avoiding the changing the shape, which has the back the final product stand device.
