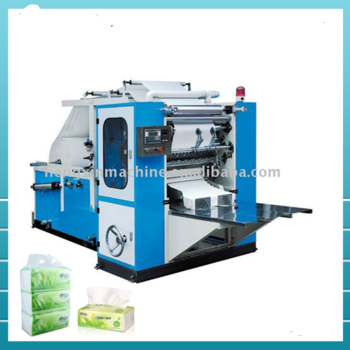

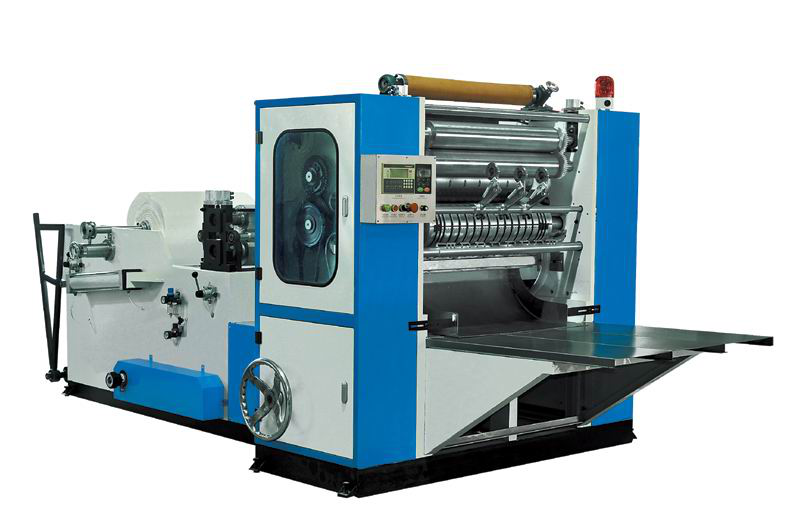

BSFDH-200-6L Facial Tissue Folding Machine

PRODUCT DETAILS

Main Technical Parameter

• ​​​​​​Electric source: 380v,52Hz,3 phase
• Total power: 22 KW
• Line NO: 6 lines
• Unfolding tissue size: 105mm,196mm(L×W)
• Production capacity: 90~100m/min
• Paper layer: 2 layers
• Diameter of jumbo roll: 1800mm
• Printing color: one color
• Base paper width: 1176mm
• Unwinder: 2 jumbo rolls
• Vacuum cylinder: 1240mm
• Embossing unit: Full embossing unit
• Slitting knifes: 7 pieces
• Perfume unit: Spray way on machine(customise)
• Outside dimensions: 10300mm×2300×2600mm(L×W×H)
• Weight: About 9800kg

Main Features

• Automatic counting, set sheet output
• Screwing cutting, vacuum pump folding
• Stepless speed regulation load the jumbo roll,and adjust the tension
• Adopt the PLC programme control,pneumatic load the jumbo roll,easy to operate the machine.
• A.C motor is saving energy
• The width of tissue will be adjusted by the Client's demand
• With One unit embossing device (Embossing design will be customized)

Optional:

1. Special Design
2. Normal Design
