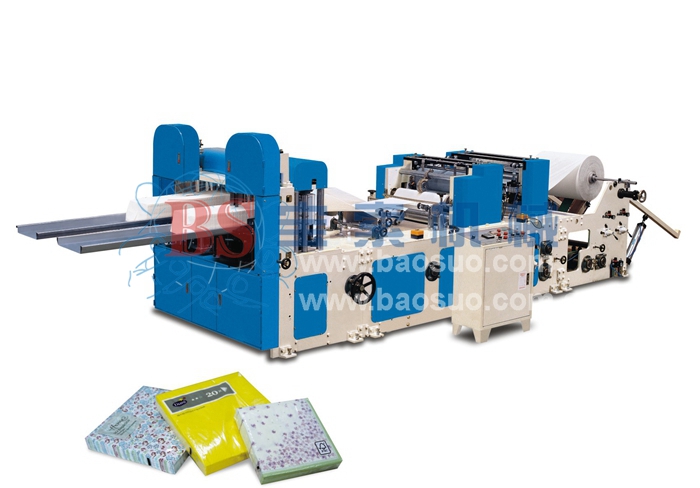

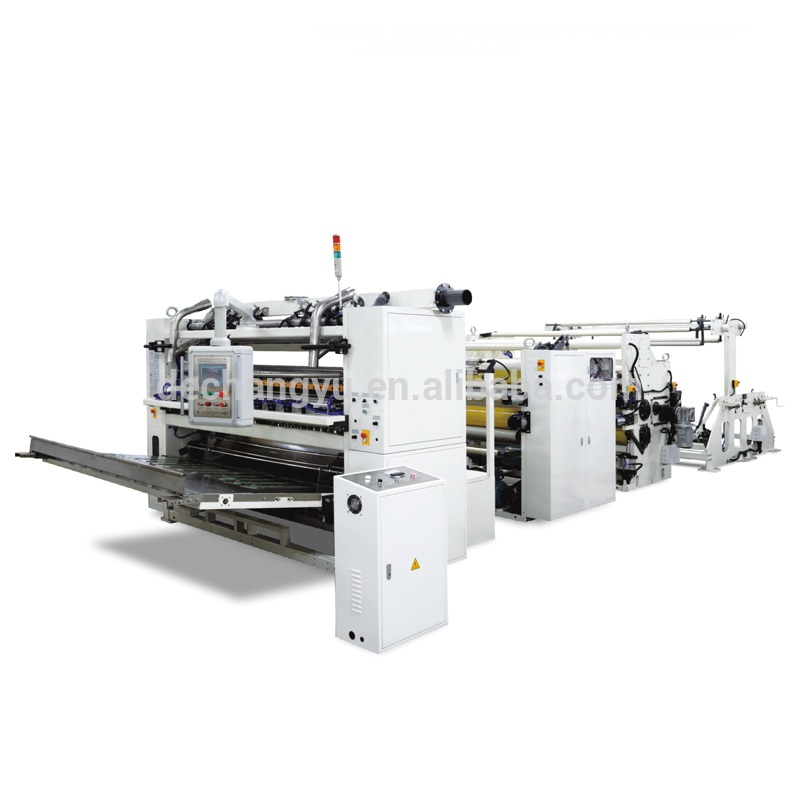

BSVDH-200-4L Lamination V Fold Towel Folding Machine

PRODUCT DETAILS

Main Technical Parameter

• Power supply: 3800V 50Hz 3Phase
• Power: 5.5kw
• Parent roll Basis weight: 15~19gsm
• Max. parent roll width: 840mm
• Max. parent roll diameter: Standard ?1100mm(can be customised)
• Quantity of unwind stand: 4 stands(Four parent roll shafts; each two at front and back,convenient for glue compound)
• Parent roll inner core dia.: Standard?3"(76.2mm)(can be customized)
• Programming controller: PLC
• Operation speed: (60~100m/min)×4 or 800 sheet/min×4
• Unfolded size: 200×(130~210)mm(L×W)
• Folded size: 100×(130~210)mm(L×W)
• Mechanical driven by stepless gear box
• Equipped with vacuum pump: 15KW (380v 50Hz)
• Embossing unit: Four sets steel to rubber(steel to steel,steel to wool,can be customized)
• Machine size: 9000×2000×1900mm(L×W×H)
• Machine Weight: 5.5T

Function and Features

1. Automatic counting sub-bit row of output,speed adjusted by inverter
2. Screw shear knives,Vaccum adsorption fold,web tension control by manual
3. Variable speed unwinding, can be adapted to different tension of row paper
4. Ellectronically and pneumatically controlled,easy to operate
5. Pneumatic parent roll loading system
6. The unwinding belt is adjusted pneumatically,when the parent paper is used up,machine will slow down to stop;
7. All the pnuematic device's air pressure are adjustable;
8. Paper Brocken or winding can affect the automatic stop function
9. Glue unit for lamination
10. Product width with adjustable range is to facilitate marketing
