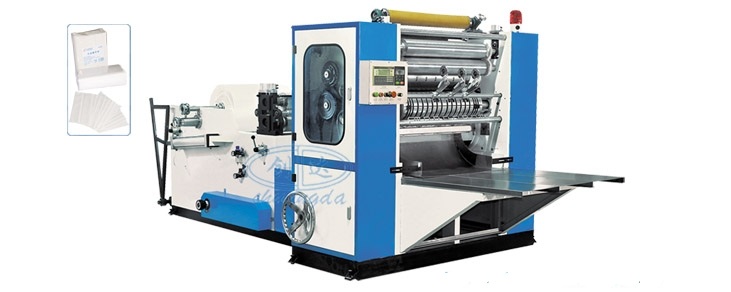

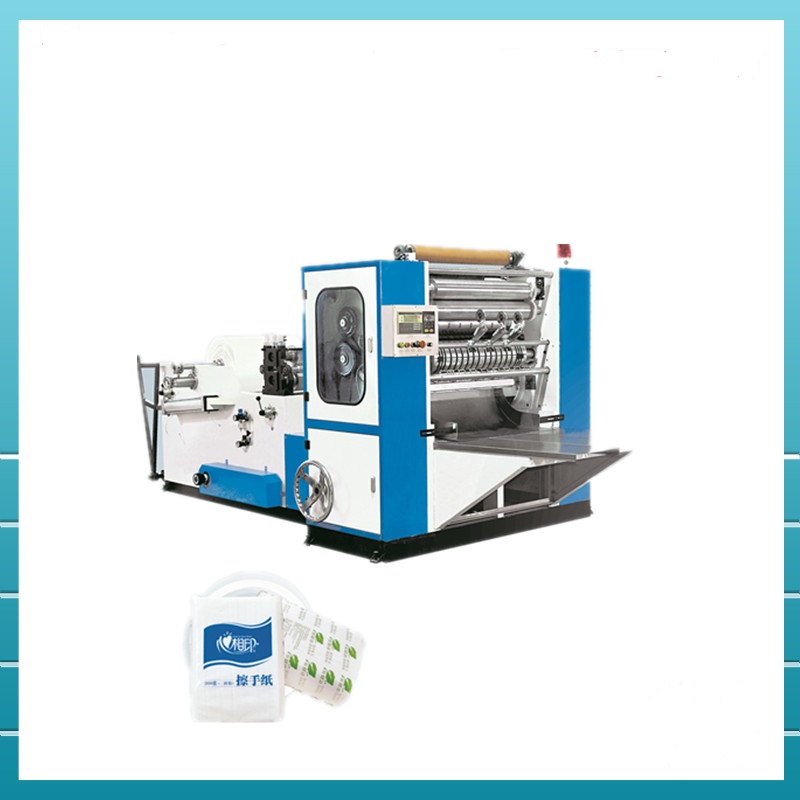

BSFS-N-3L Folding Towel Machine

PRODUCT DETAILS

Three folded hand towel machine cutting the slitting hand towels through embossed, interaction fold into "N" type,When using the first piece comes out with the second piece.The products are widely used in hotel,office and kitchen for hands,convenient and health.The machine base paper applicability,folding,cutting,counting multi-channel working procedure, is characterized by a high speed,the paper neatly.

Function and Features

• Steel to steel embossing,pnuematic compression.
• It adapts the vacuum adsorption new technology.
• Pnuematic pot slitting and convenience to pull throught machine
• It has more correct and low noise timing belt driving.
• Optional programmable controller(Order)

Main Technical Parameter

• Electric power: 15KW
• Pnuematic system: 3 air compressor,pressure at least 5kg/cm2pa
• The maximum diameter of jumbo roll: 1100mm
• The width of jumbo roll: 690mm
• Unfolding final production: 230×230mm
• Production speed: 800pcs/min
• Machine size: 4000×1800×1900mm
• Weight: 3000kg
