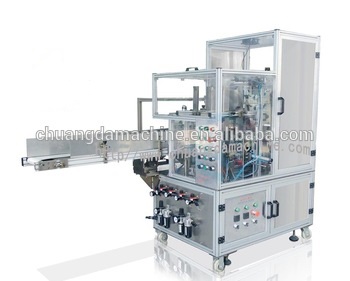

BSBS-236 Automatic Box Sealing Machine

PRODUCT DETAILS

BSBS-236 automatic box sealing machine is the auxiliary equipment for the box-packing tissue machine.The machine is used to seal and glue all kinds of packing paper boxes.This machine adopts PLC programming,automatically opening box and inserting paper.Whole process is automatic, stable performance, simple operation, high efficiency, seal box of quality and beautiful, box-drawing face tissue machine's preffered equipment.

Main Technical Parameter

• Suitable box-size: (100~240)mm×(100~120)mm×(50~110)mm(can be adjusted)
• The quality of box: 350~400g/m2
• Suitable adhesive: hot-melting glue
• Melting container: aluminium stove,adjustable temperature
• Control system: electromagnetic clutch paper feeding,PLC program control
• Production speed: 25~30 boxes/min
• Installed power:AC380v 50Hz 0.75KW(motor)2.4KW(heating)
• Machine size: 2690×1800×1770mm(L×W×H)
• Air pressure: 0.6Mpa(need absolute stable,prepared by the purchaser)
