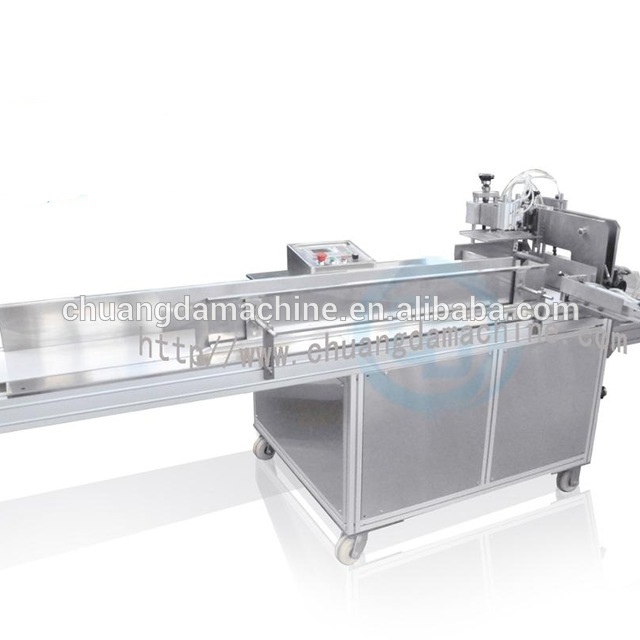

BS-30 Semi Auto Tissue Packing Machine

PRODUCT DETAILS

* The machine can link to front-end directly,acheive continous packaging;
* Bagging sealing once completed.Improve work efficienncy,reduce the production cost.
* This machine simple operation,low deand for operating workers;
* Replace artificial operation, Product appearence more norms.
* The machine adopts brand PLC computer programming control,control accurate positioning;Operating parameters settings changes convenient.
* This machine control parts is imported high quality standard parts,machine performance is stable and reliable.

Working flow

1 Put paper on the conveyor;
2 Automatically take the bundle of paper to front of push cylinder;
3 Put packing bag insert discharge hole,start jog switch;
4 pnuematic push paper into bag,then sealing and cutting meanwhile.

Main Technical Parameter

* Total power: 0.4KW
* Packaging speed: 10~15 package/minutes
* Power voltage: 220V,50Hz
* Air pressure: 0.4~0.8MPA(client self-provided)
* Packing size: (100~200)×(100~200)×(40~120)mm
* Machine size: 2500×900×1300mm
