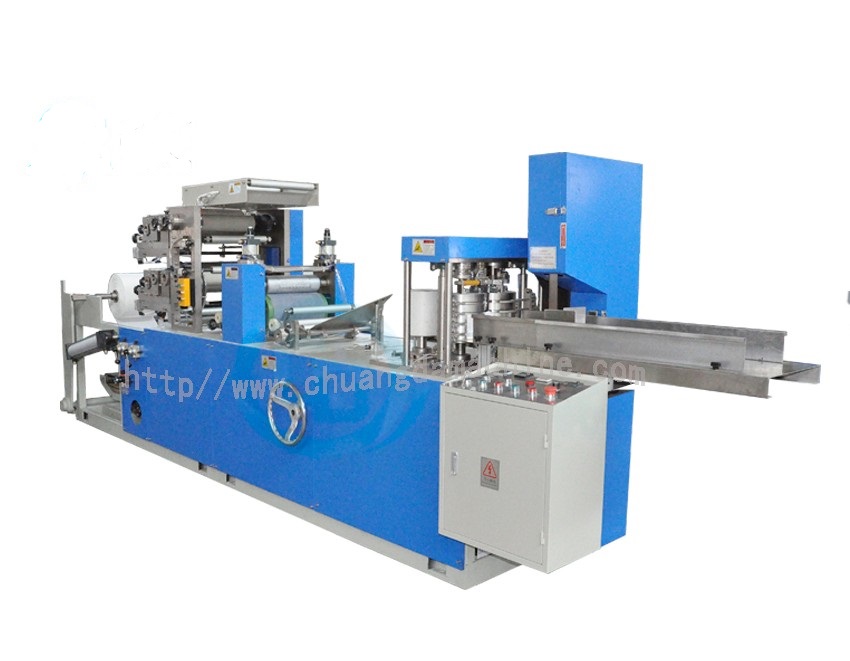

BSND-200-400H High Speed Double Layer Napkin Machine
PRODUCT DETAILS
Two-color Printing Napkin Folding Machines is to Print and emboss on the jumbo roll,and then slit and fold into square and rectangle napkin.Its embossment is clear and bright printing is accurate,and running is high speed and stable.This machine is specialized to process and produce high quality napkin products.
Machine Functions
- Driven with Synchronous belt.
- Color printinng unit is with flexible printing,the design can be changed easily according to needs.
- Equipped with Embossing unit,making clear design.
- Electronic counting system to makeing displacement output.
- Folding board is matched with mechanical hands to fold,and then slit by band saw.
- Can be customized according to different sizes.
Main Technical Parameter
- Power Supply: 380V 50HZ
- Power: 4.5KW
- Napkin Unfold Size: 300×300mm(can be customized)
- Napkin Foldede Size: 150×150mm
- Raw Paper Roll Max Diameter:1100mm
- Raw paper Core Inner Diameter: 76mm
- Production Speed: 700~1000pcs/min
- Printing method: Flexible Printing,1~2 colors
- Embossing Unit: Steel to Wool
- Counting Unit: Electronic Counting
- Machine Size: 8600×1300×1800mm
- Machine Weight: 2000~4000kgs
