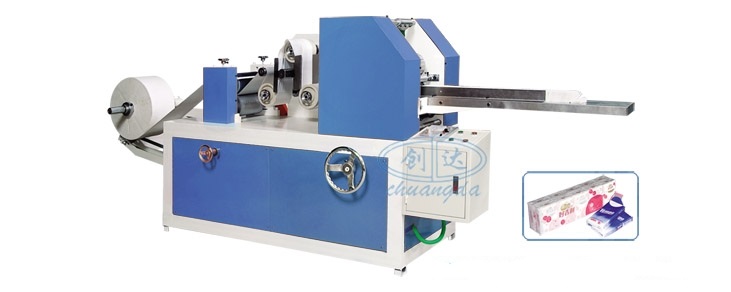

BSMPF-210F Full Auto Mini Pocket Tissue Production Line

PRODUCT DETAILS

 BSMPF-210F Full Auto Mini Pocket Tissue Machine, it is a type of machine adopts vacuum adsorb and high speed to fold the paper. Adopting step-less sdjusting speed, and it is running smoothly.It is special equipment for 4 folding facial tissue machine. This machine compossed of raw paper stand,embossing unit, vertical folding unit, cutting and horizontal folding unit, It runs a whole set of rolling to fix difference tension of raw paper,embossed,vertical folding,pushing the paper,cutting the paper,horizontal folding paper and finished products transfer.

The flowing chart of machine

Raw material -> width guilding -> Embossing -> Folding -> Cutting -> V folding -> counting -> transfer to packing machine -> packing -> final product output.

Main Technical Parameter

• Electric power of machine: 38v 50/60HZ 3 phase
• Total power of machine:18KW
• Raw material size: Max Dia 1200mm
• Nunmber pcs per pile: 10
• Machine speed: 500~600pcs/min
• Packing speed: 25~90packs/min
• Unfolding size: 200×200mm,210×210mm(L×W)
• Folding size: 50×100mm,52×105mm(L×W)
• Packing size: (70~110)×(50~55)×(18~28)mm(L×W×H)
• Air pressure: >=0.5Mpa
• Machine size: mm: 5500×4500×1750mm(L×W×H)
